Angular Adjustment Stages WV 100

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_wv_100.pdf

Description

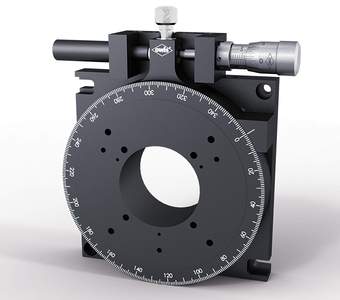

The WV 100 angular adjustment stages are suitable for combined coarse adjustment and high-resolution fine adjustment.

Their aperture allows transmitting components to be rotated around the optical axis.

Other rotational axes, including multi-dimensional configurations, can also be realized using the accessories.

  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • coarse and fine adjustment
  • with fine-thread screw or micrometer
  • for vertical and horizontal use
  • way of installing:
    – on optical tables with mounting plate with MP-D(M)T 100-WV 100

Option
- nonmagnetic versions available

Art. Nbr. Type Title
34.100.4001 WV 100-D40-FGS

angular adjustment stages WV 100 with ø 40 mm aperture and retainer, with fine-thread screw

34.100.4002 WV 100-D40-MS

angular adjustment stages WV 100 with ø 40 mm aperture and retainer, with micrometer

34.100.9001 ADP-WV100-M6

adapter plate for WV 100, without aperture, with M6
