Adjustable Inserts with disc springs JT 40T

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_jt_40t.pdf

Description

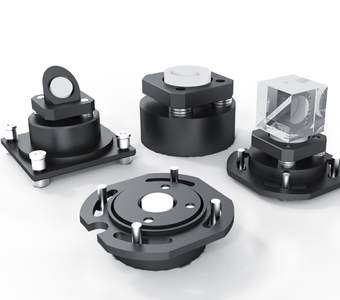

The JT 40T adjustable inserts enable optical elements to be set with high precision, secure against shock and vibration, and long-term stable. The moveable plate is supported on packets of disc springs, and held against the base plate by three screws.

Using an intermediate substrate of optical glass to absorb thermal stresses ensures a low-stress bond to eliminate distortion of the surface of the optical element.

This permits the use of adjustable inserts for beamsplitter cubes and plates, as well as front plane mirrors, or even for high-precision assemblies such as Mach-Zehnder or Michelson interferometers.

  • for use with SYS 40
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • modular assembly
  • angular motion at 2 axes
  • long-term stability
  • vibration insensitive
  • designed for industrial application

Option
- non-magnetic versions available

Art. Nbr. Type Title
14.214.1010 JT 40T-STW10Z-O

adjustable inserts with disc springs for 10 mm beam splitter cubes or prisms 10 x 10 x 10 mm

14.214.1015 JT 40T-STW15Z-O

adjustable inserts with disc springs for 15 mm beam splitter cubes or prisms 15 x 15 x 15 mm

14.214.1110 JT 40T-STW10Z-M

adjustable inserts with disc springs for beam splitter cubes or prisms 10 x 10 x 10 mm

14.214.1115 JT 40T-STW15Z-M

adjustable inserts with disc springs with beam splitter cube R/T 50:50, 15 x 15 x 15 mm

14.214.2015 JT 40T-STPZ-O

adjustable inserts with disc springs for beam splitter plates 15 x 20 x 3 mm

14.214.2115 JT 40T-STPZ-M

adjustable inserts with disc springs with beam splitter plate 15 x 20 x 3 mm

14.214.3018 JT 40T-USZ-O

adjustable inserts with disc springs for deflection mirrors 18 x 25 x 3 mm

14.214.3118 JT 40T-USZ-M

adjustable inserts with disc springs with deflection mirror, with Al coating and protective layer,
18 x 25 x 3 mm, elliptic

14.214.4022 JT 40T-PHSZ-O

adjustable inserts with disc springs for mirrors ø 22.4 mm

14.214.4122 JT 40T-PHSZ-M

adjustable inserts with disc springs, with plane mirror with Al coating and protective layer,
ø 22.4 mm

14.215.1015 JT 40T-STW15-SZ

adjustable inserts with disc springs for beam splitter cubes 15 x 15 x 15 mm, on socket

14.215.2015 JT 40T-STP15-SZ

adjustable inserts with disc springs for beam splitter plates 15 x 20 x 3 mm, on socket

14.215.3018 JT 40T-US-GZ-SZ

adjustable inserts with disc springs for deflection mirrors 18 x 25 x 3 mm, on socket

14.215.4022 JT 40T-VS-GZ-SZ

adjustable inserts with disc springs for mirrors ø 22.4, on socket

14.120.0001 W 40

cube for SYS 40

14.094.0600 W 40-4

mounting cube for SYS 40

14.110.0025 OH 40-D25

optic holder for ø 25 mm
