Adjustable Inserts with disc springs JT 25T

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_jt_25t.pdf

Description

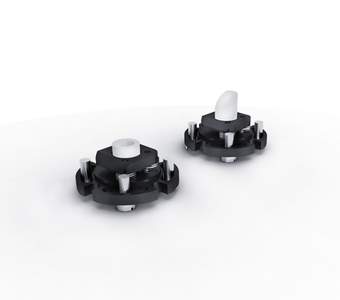

The adjustable inserts JT 25T can be mounted in W 25 cubes as well as in holders for mounted optics
OH 25-D16, and build highly stable beam deflectors.

For example Mach-Zehnder or Michelson interferometers can be realized with W 25 cubes.

For a highly precise, shock-resistant and long-term stable adjustment, the disc springs are braced with the base plate by three screws. The optics are aligned in theta and phi with two screws. A further one provides a limited possibility to compensate different substrate thicknesses, or to eliminate reflections.

  • for use with SYS 25
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • modular assembly
  • angular motion at 2 axes
  • long-term stability
  • vibration insensitive
  • designed for industrial application

Option
- non-magnetic or vacuum-prepared versions available

Art. Nbr. Type Title
12.214.1010 JT 25T-STW-O

adjustable inserts with disc springs, for beam splitter cubes or prisms 10 x 10 x 10 mm

12.214.3013 JT 25T-USZ-O

adjustable inserts with disc springs, for deflection mirrors with max. 12 x 7 x 2 mm

12.120.0001 W 25

cubes for SYS 25

12.110.0016 OH 25-D16

holders for mounted optics, with ø 16 mm
