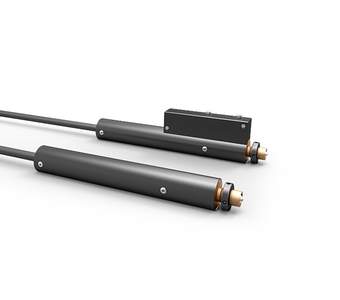

Actuators with non-rotating tip MMS 19
OWIS Fine opto-mechanics
External URL: owis.eu
DATASHEET: pi_mms_19.pdf
Description
The MMS 19 actuators provide highly precise linear motion for travels up to 25 mm with very high resolution. They consist of a micrometer with non-rotating tip in a minimized compact design and are driven by 2-phase step motors or closed-loop DC servo motors.
Easily mounted via the M9 x 0.5 thread, they enable the later motorization of the manual positioners.
The high actuating force allows a couple of applications.
To ensure a non-destructive work, two limit switches are integrated.
- non-rotating tip
- travel up to 25 mm
- deformation-resistant aluminium
- reflection-poor, black anodized
- Hall-effect or mechanical limit switches
- step motor with gear or DC servo motor with encoder and gear
- with OWISid
Option
- vacuum-prepared versions available
| Art. Nbr. | Type | Title |
|---|---|---|
| 49.019.12AK | MMS 19-12-HiSM |
actuators with non-rotating tip, 12 mm travel, with step motor and Hall-effect limit switches
|
| 49.019.12BK | MMS 19-12-MiSM | actuators with non-rotating tip, 12 mm travel, with step motor and mechanical limit switches |
| 49.019.25AK | MMS 19-25-HiSM | actuators with non-rotating tip, 25 mm travel, with step motor and Hall-effect limit switches |
| 49.019.25BK | MMS 19-25-MiSM | actuators with non-rotating tip, 25 mm travel, with step motor and mechanical limit switches |
| 49.019.12GP | MMS 19-12-HiDS | actuators with non-rotating tip, 12 mm travel, with DC servo motor and Hall-effect limit switches |
| 49.019.12WP | MMS 19-12-MiDS | actuators with non-rotating tip, 12 mm travel, with DC servo motor and mechanical limit switches |
| 49.019.25GP | MMS 19-25-HiDS | actuators with non-rotating tip, 25 mm travel, with DC servo motor and Hall-effect limit switches |
| 49.019.25WP | MMS 19-25-MiDS | actuators with non-rotating tip, 25 mm travel, with DC servo motor and mechanical limit switches |
| 49.919.0912 | AGB-M9-M12 | thread adapter M9 x 0.5 to M12 x 0.5 |
| 90.999.0011 | SST.F11 | grease for spindle, 5 ml in applicator |
