Product Catalog

<div>- Adjust velocity by tilting the stick<br> - Voltage swing -9V to +9V<br> - Rated current 250mA<br> - Battery operated<br> - Push to turn ON <br> - Release to turn OFF<br> - Battery life 5 years under normal lab operation conditions<br> - Use with 6-12V DC brushed motors of 6-25mm diameter<br> - Connector type is the standard 3.5mm dia. stereo plug</div>

Controls and drives 1 miniature DC Servo motors. Quadrature encoder interface. No external power needed. Up to 4 axis can be controlled from the same PC. Works with 6-12V DC Faulhaber, MicroMo and MAXON motors No Command List needed. Available only as an option. Visual Basic and LabView drivers available. DEMO program available Recommended motors are DCG-1216 and DCS16-1004 Ideal for motorizing manual Opto-Mechanics

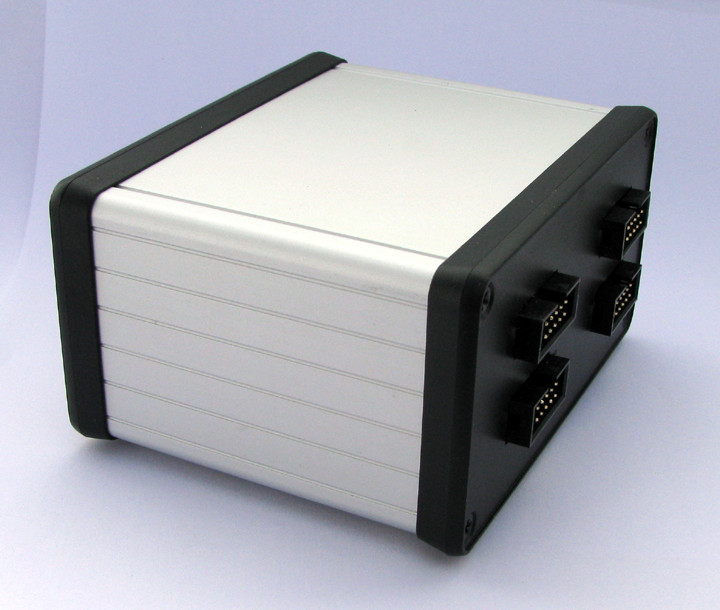

<div> <div> <div>Designed for DC Servo motors with quadrature ecoder.</div> Our goal was to make this controller very flexible and user friendly.</div> Can be controlled from one PC interface via USB, RS-232, Ethernet or wireless.</div> <div>DEMO software and LabView drivers available.</div> <div> </div> <ul><li>Four independent axis installed in an extruded Al enclosure.</li> <li>Based on the single axis OEM controller board <strong><a href="/products/dsp-21-motor-controller-rohs">DSP-21</a></strong></li> <li>Maximum electrical motor specs: 24V, 1Amp, DC.</li> <li>Adjustable speed, acceleration and torque</li> <li>Closed loop with PID control</li> <li>Simple 2 letter commands via a terminal program.</li> <li>User MACRO programing capability</li> <li>Software configurable Limit Switched and motor direction.</li> </ul><div> </div> <div> <div><strong>Similar products                         Recommended mechanics </strong>     </div> <div>      STX-400                                         LDC-10</div>  </div> <div> </div>

One axis Motor Controller for small and medium DC Servo motors. - Up to 35V, 3A DC power supply. - Encoder feedback option available with absolute position. - The PC Interface can be RS232, RS485, USB, Ethernet or wireless. - Up to 99 boards may share same PC host interface. - 2 ch general purpose 10-bit A/D input port for reading 0 to 5V. - Home reference switch with indexing for repeatable positioning. - End of travel switches. - Absolute positioning via Joystick on front panel. - Simple Terminal type programming. - DEMO program. - LabView drivers. - Analog output drive for low noise environments. - Recommended mechanics: DCS16-1004, LDC-25, SuprMike and stages and actuators.

<div>- Adjust velocity by tilting the stick- Simultaneous control for 2 axis in XY configuration- Programmable parameters- No Power Supply needed to operate- Press down to RESET display to "0"- Use with DSP-21 controller only- Connecting cable included</div>

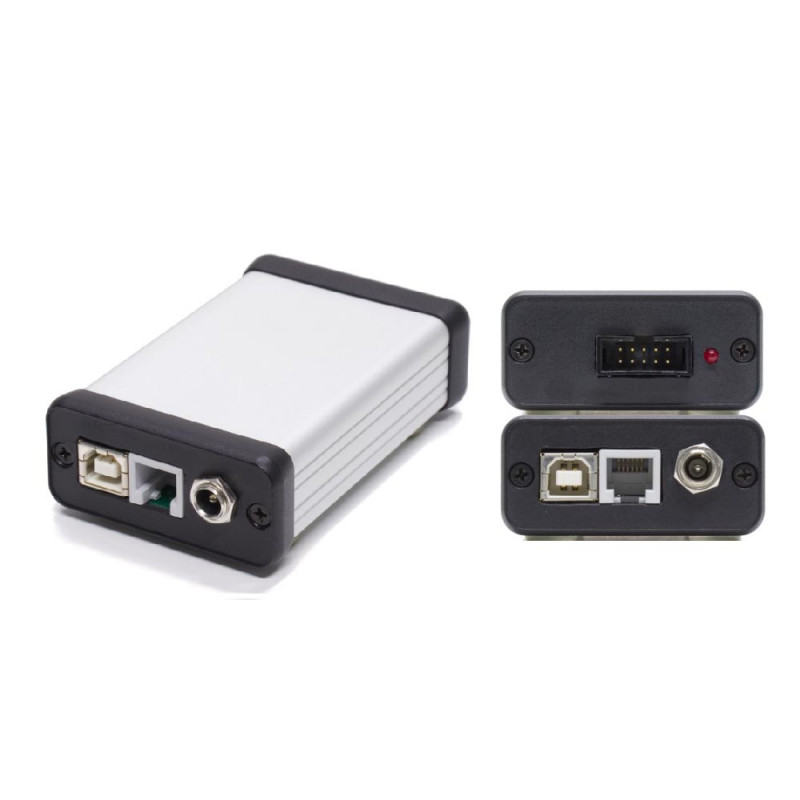

Stepper Motor Controller for one bipolar stepper motor replaces any controller. Encoder feedback option available with absolute position. The PC Interface can be RS232, RS485, USB, Ethernet or wireless. Up to 99 boards may share same PC host interface. 2 ch general purpose 10-bit A/D input port for reading 0 to 5V. Home reference switch with indexing for repeatable positioning. End of travel switches. Full, 1/2, 1/4, 1/8 and 1/16 or wave step modes up to 72,000 microsteps per 360 degrees. Simple Terminal type programming. DEMO program. LabView drivers. Recommended mechanics: stages and actuators.

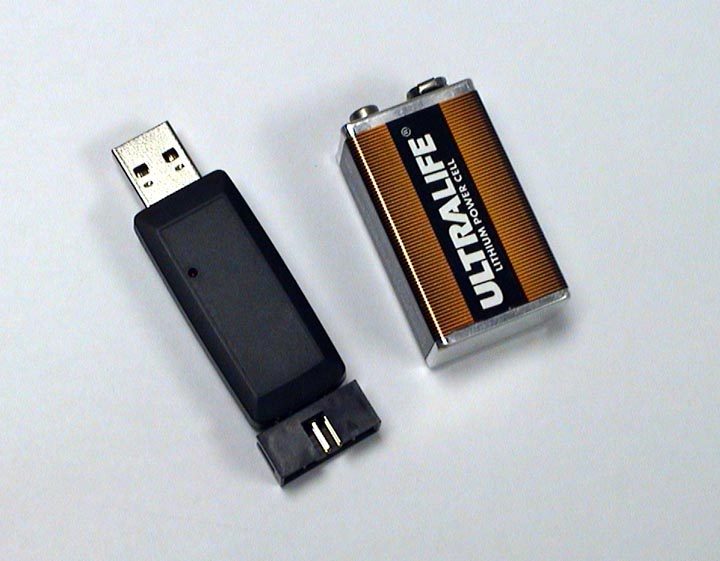

Controls 1 miniature stepper motor No external power needed Can operate in micro stepping mode 1/90 No programming necessary. Visual Basic and LabView drivers. Ideal for motorizing manual Opto-Mechanics Recommended motors: 3- 6-12V, 200mA/phase Compatible Linear stage: LDC-10, LDC-25 etc... Compatible Rotational Stage: PRS-55

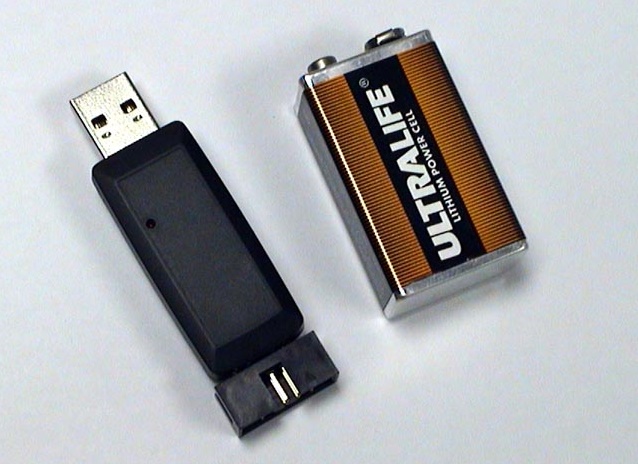

Controls and drives 1 miniature DC Servo motors. No external power needed. Up to 4 axis can be controlled from the same PC. Works with 6-12V DC Faulhaber, MicroMo and MAXON motors No Command List needed. Available only as an option. Visual Basic and LabView drivers available. DEMO program available Recommended motors are DCG-1216 and DCS16-1004 Ideal for motorizing manual Opto-Mechanics

<div>One axis miniature Stepper Motor Controller and driver.</div> <div>User selectable micro-stepping up to 256.</div> <div>The PC Interface can be RS232 or USB.</div> <div>Up to 20 boards may share same PC host interface.</div> <div>Two chanells general purpose 10-bit A/D input port for reading 0 to 5V.</div> <div>Home reference switch with indexing for repeatable positioning.</div> <div>Programable end of travel limit switches.</div> <div>Digital and Analog I/Os.</div> <div>No programming needed.</div> <div>DEMO software and LabView drivers.</div>

<div>One axis DC Motor Controller. RoHs compliant.</div> <div>Encoder feedback option available with absolute position.</div> <div>The PC Interface can be RS232, USB or wireless.</div> <div>Up to 6 boards may share same PC host interface.</div> <div>2 ch general purpose 10-bit A/D input port for reading 0 to 5V.</div> <div>Home reference switch with indexing for repeatable positioning.</div> <div>End of travel switches.</div> <div>Digital and Analog I/Os.</div> <div>Programmable limit switches.</div> <div>No programming needed. DEMO software and LabView drivers.</div> <div>Manual and PC control via RS232, USB or wireless.</div> <div>Can be used as replacement for, and Optosigma controllers.</div>
