Tube Clamps ASB-D20-54

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_asb-d20-54.pdf

Description

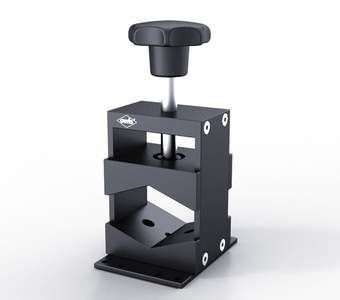

The ASB-D20-54 tube clamps are designed for holding lasers (He Ne, Ar+ etc.), detectors, etc. with diameters ranging from 20 mm to max. 54 mm.

With the base plate, tube clamps can be mounted directly on a PR 80 prism stage. Without the base plate, the tube clamps can be assembled on a pin.

  • for use with SYS 65 for clamping diameter 37 mm
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • high stability
  • clamping diameter 20 mm up to 54 mm
  • load capacity max. 200 N
  • moment of tilt max. 5 Nm
  • ways of installing
    - on pin
    - on prism stages PR 80 with base plate
Art. Nbr. Type Title
29.100.2057 ASB-D20-54

tube clamps for lasers ø 20 - 54 mm
