Description

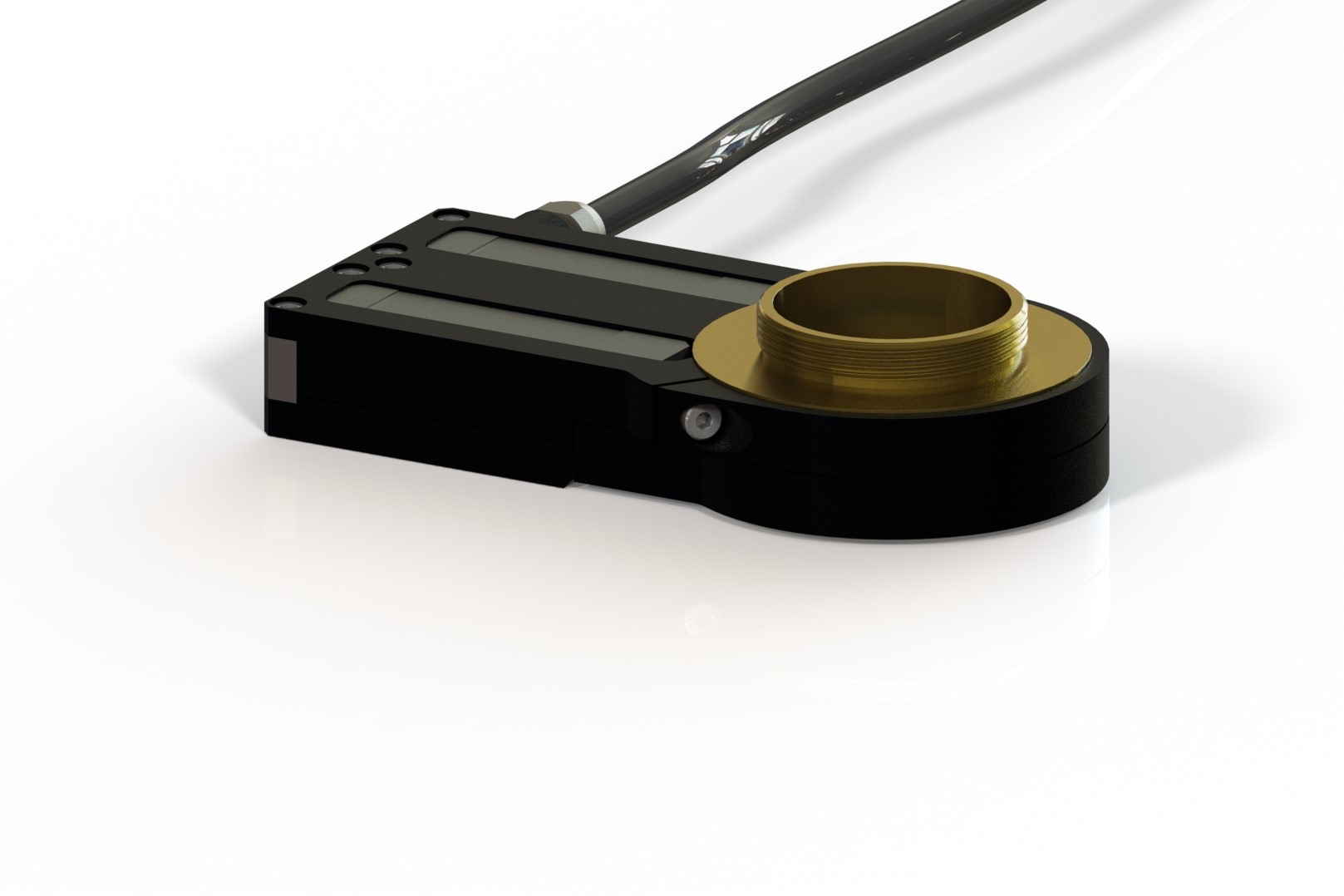

SFS-D00150 SlimFocus are designed to give microscope-users free space around the objectives or other probes. The travel range is 150 µm.

Product-Code SFS-D00150 Unit
Position-Sensor SGS, Full-Bridge
Range, Closed Loop 150 µm
Range, Open Loop (0..150 V) 180 µm
Range, Open Loop (-45..180 V) 280 µm
Resolution, open loop 0,8 nm
Resolution, closed loop 1,5 nm
Linearity, closed loop 0,2 %
Repeatability 15 nm
Load 130 g
Push/Pull, maximum 10/5 N
Lateral Force, maximum 5 N
Stiffness 0,1 N/µm
Resonance, with thread-adapter 200 Hz
Resonance, with 125 g objective 80 Hz
Elektrical Capacitance @ 1V eff, 1kHz 2.2 µF
Body-Material aluminum/stainless-steel
Operating Temperature -20..+80 °C

Options:

  • Vacuum-Compatibility
  • Suitable Driver, open-loop, EBO-050100
  • Suitable Controller, closed-loop, EBD-060100
