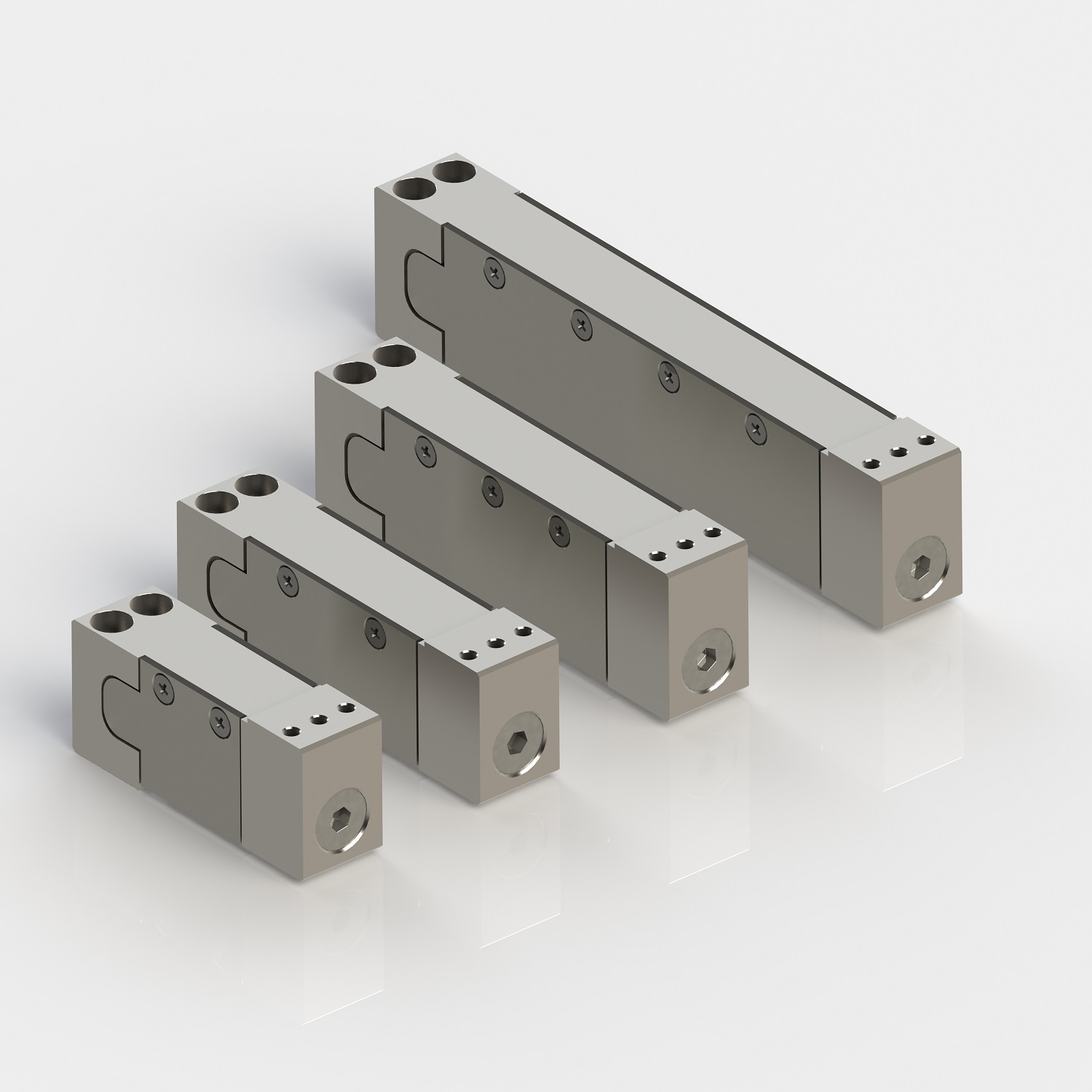

Piezo Parallel Lever-Actuators
nanoFaktur Piezo stages and actuators
External URL: nanofaktur.com
DATASHEET: PPX-Specification.pdf
Description
PPO and PPS levers are driven by our superior MPO stack-actuators. The high strain of these stacks allows for smaller constructions at given displacements. Our levers are equipped with electro-eroded flexures. This is a difference to other suppliers. Flexures avoid friction (wear, non-accuracies) and also micro-cracks, which would reduce life-time. The moving platforms (10×13 mm) are being guided in parallel. Thus PP0 and PPS are not simple drives, but also guidances.
PPS are equipped with strain-gage (SGS) full-bridges, which care for temperature-compensated measuring and controlling positions.
| Product-Number | PPa-b00100 | PPa-b00250 | PPa-b00500 | PPa-b01000 | Unit |
| Displacement (0..150 V) | 100 | 250 | 500 | 1.000 | µm |
| Displacement (-45..180 V) | 160 | 400 | 800 | 1.600 | µm |
| Resolution, open loop | 0,2 | 0,3 | 0,5 | 1 | nm |
| Resolution, closed loop | 2 | 6 | 12 | 25 | nm |
| Linearity, closed loop | 0,1 | 0,2 | % | ||
| Repeatability | 7 | 10 | 30 | 60 | nm |
| Push/Pull, maximum | 50/20 | 30/15 | N | ||
| Lateral Force, maximum | 40 | 30 | N | ||
| Stiffness | 0,85 | 0,5 | 0,22 | 0,11 | N/µm |
| Resonance, unloaded | 850 | 630 | 340 | 210 | Hz |
| El. Capacitance @ 1V eff, 1kHz | 1.1 | 3.3 | 4.4 | 7.7 | µF |
| Body-Material | stainless-steel | ||||
| Lenght L | 45 | 59 | 69 | 99 | mm |
| Hight H | 20 | 20 | 22,5 | 22,5 | mm |
| Operating Temperature | -20..80 | °C | |||
Options:
- Vacuum-Compatibility
- Suitable driver, open-loop, EBO-050100
- Suitable controller, closed-loop, EBD-060100
