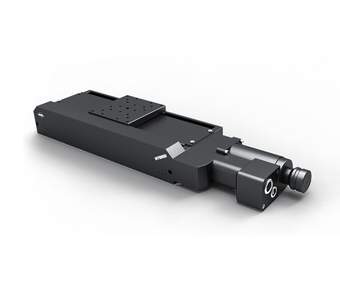

Nano-Hybrid Linear Stages NHL 84

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_nhl_84.pdf

Description

The NHL nano-hybrid linear stages are characterized by long travel ranges up to 270 mm with precise positioning in nanometer range.

The established mechanism of spindle drive with stepping motor ensures high load capacities and high torque. The integration of a piezoelectric actuator and a high-resolution linear measuring system enables the fine positioning for very high accuracy and fine resolution. This makes the linear stages of the new OWIS positioning generation perfect for use in applications requiring the highest precision for very high loads and long travels, which a common nanopositioning system could not offer. The nano-hybrid linear stages provide both, properties of a micro positioning system as well as of a nanopositioning system.

Multi-axes combinations can also be realized.

The basic components of the hybrid linear stages are made of high strength aluminium. The top quality black anodized protective coating of the aluminium parts prevents reflections or stray light almost completely.

  • positioning stage in hybrid technology, with 2-phase step motor and piezo actuator
  • high precise positioning in the nanometer range
  • travel up to 270 mm
  • preloaded recirculating ball bearing guides
  • backlash-free ball screw
  • with integrated linear measuring system
  • with metal covering
  • Hall-effect limit switches
  • with OWISid
Art. Nbr. Type Title
71.089.04HP NHL 84-45-HiSM

nano-hybrid linear stages with step motor and piezo actuator, 45 mm travel

71.089.07HP NHL 84-70-HiSM

nano-hybrid linear stages with step motor and piezo actuator, 70 mm travel

71.089.12HP NHL 84-120-HiSM

nano-hybrid linear stages with step motor and piezo actuator, 120 mm travel

71.089.17HP NHL 84-170-HiSM

nano-hybrid linear stages with step motor and piezo actuator, 170 mm travel

71.089.27HP NHL 84-270-HiSM

nano-hybrid linear stages with step motor and piezo actuator, 270 mm travel

41.083.0001 MONT-LT(M)80-Z

Z Assembly Bracket for LT(M) 80(P/F/M), LIMES 84N and NHL 84 series, without assembly

41.083.0004 MONT-LT(M)-XY

XY assembly kit for LT, LTM and LIMES, without assembly, not for

P version

41.083.0014 MONT-LT(M)-XY-MM

XY assembly kit for LT, LTM, LIMES, with assembly, not for

P version

90.999.0011 SST.F11

grease for spindle, 5 ml in applicator

90.999.0002 SST.F2

grease for guides, 5 ml, in applicator
