Miniature XY Stages MKT 40B

OWIS Fine opto-mechanics

External URL owis.eu
DATASHEET pi_mkt_40b.pdf

Description

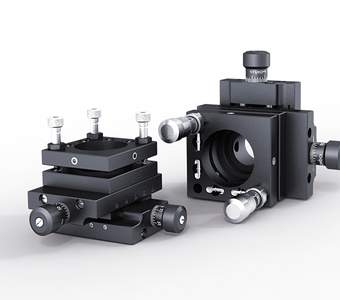

The MKT 40B miniature XY stages are preloaded with springs and therefore backlash-free. The fine-thread spindles with graduated button enables sensitive adjustment. The dovetail guides are adjustable and maintain their accuracy over very long time.

The MKT 40B are for use with SYS 40, when mounted on slide RT 40, and the versions with transmitting mount can carry mounted optics with ø 25 mm.

  • for use with SYS 40
  • deformation-resistant aluminium
  • reflection-poor, black anodized
  • with fine-thread spindle
  • compact design
  • low mass
  • ways of installing:
    – on slide
    – on pin

Option
- non-magnetic or vacuum-prepared versions available

Art. Nbr. Type Title
14.342.1300 MKT 40B-D15-SK

miniature XY stage without end plate, without transmitting mount

14.342.1301 MKT 40B-TRANS40-FGS

miniature XY stage without end plate, with transmitting mount with fine-thread screws

14.342.1302 MKT 40B-TRANS40-MS

minature XY stage with transmitting mount with micrometers

14.342.1303 MKT 40B-TRANS40-T

miniature XY stage without end plate, with transmitting mount with disc springs

14.342.1304 MKT 40B-TRANS40-FGS-Z

miniature XY stage without end plate, with transmitting mount with fine-thread screws and Z adjustment

14.342.1330 MKT 40B-D15-SK-EP

miniature XY stage without transmitting mount with end plate

14.342.1331 MKT 40B-TRANS40-FGS-EP

miniature XY stage with end plate, with transmitting mount, with fine-thread screws

14.342.1332 MKT 40B-TRANS40-MS-EP

miniature XY stage with end plate, with transmitting mount with micrometers

14.342.1333 MKT 40B-TRANS40-T-EP

miniature XY stage with end plate, with transmitting mount with disc springs

14.342.1334 MKT 40B-TRANS40-FGS-Z-EP

miniature XY stage with end plate, with transmitting mount with fine-thread screws and Z adjustment

14.349.0326 OH 40-D26-LTD40B

mounting plate for MKT 40C, MKT 40B, MVT40C-XYZ, ø 25 mm / 25.4 mm (1")

14.340.2000 RT 40-16-R-MVT40

slide SYS 40, 16 mm, for MVT 40, MKT 40, KTM 40

14.341.1302 ADP 40-DTF

pin adapter for MVT 40(B), MKT 40 and WV 40

14.349.0325 OH 40-D25-LTD40B

mounting plate MKT 40, ø 25 mm
