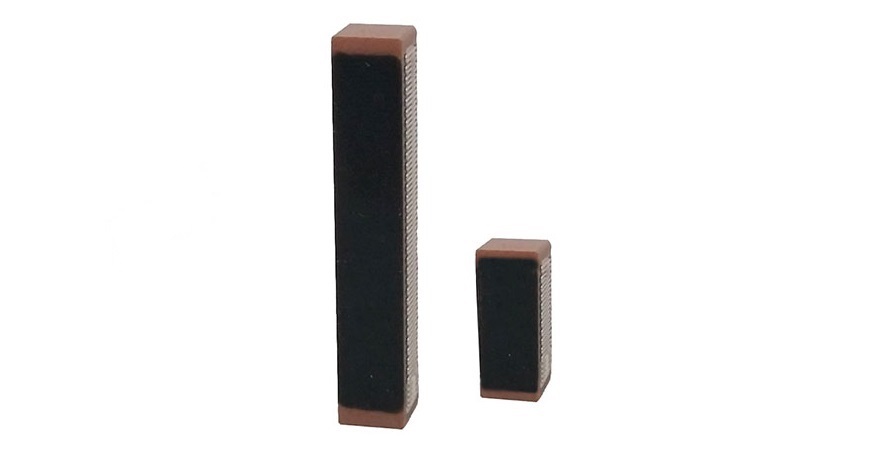

MPO Piezo Stacks

External URL nanofaktur.com
DATASHEET MPO-Specification.pdf

Description

MPO show the following outstanding properties:

  • Large strain of ca. 1.5‰ at 0 to 150 V
  • >2‰strain in the extended voltage-range of -45 to 180 V
  • Consequently laminated structure and monolithic sintering guarantee best possible dimensional tolerances and straightness of motion
  • Avoiding of micro-cracks and the pillow-effect at simultaneous insulation-safety is achieved by µm-precise definition of the electrodes (drawn back) in combination with an elastic isolation

Product-Number MPO-050015 MPO-050030 MPO-050050 MPO-050100 Unit
Expansion (0..150 V) 15 30 45 90 µm
Expansion (-45..180 V) 23 47 72 143 µm
Push/Pull 1,500/50 N
Blocking Force, @ 0..150 V 1,125 N
Stiffness 75 37 25 12 N/µm
Resonance, unloaded 105 55 40 24 kHz
el. Capacitance @ 1V RMS, 1 kHz 1.1 2.2 3.3 6.6 µF
Cross Section, End-Pieces, A 5.0 x 5.0 mm
Cross-Section incl. Contacts and Insulation 6.0 x 6.0 mm
Length, L 10 20 30 60 mm
Parallelism/Flatness 2 µm
Operation-Temperature (Stack) -40.. 180 °C

– Spherical End-Pieces

– Connection Wires, PTFE, 200 mm

– Housing, Encapsulation, Preload

– Suitable Electrical Driver, e.g. EBO-050100
