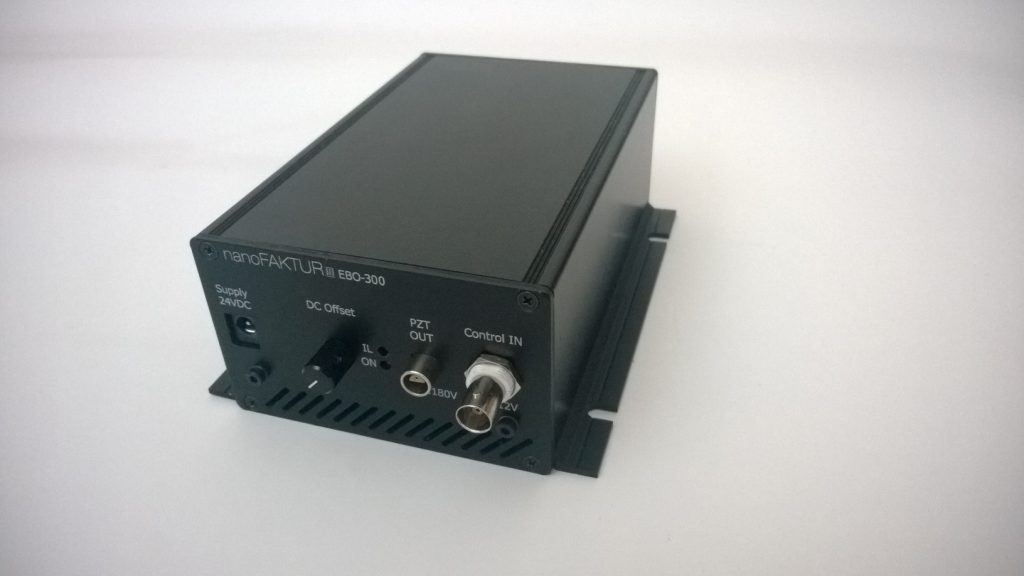

EBO-300100

nanoFaktur Piezo stages and actuators

Description

Product-Number EBO-300100 Unit
Channels 1
Output-Voltage -45 bis 180 V
Input-Voltage -3 bis 12 V
Offset-Adjustment with Potentiometer 0 bis 10 V
Amplification 15
Noise, Output 0.3 mV
Max. Current (<4 ms) 600 mA
Max. Average Current 300 mA
Protection Short Circuit Proof
Supply-Voltage 24 VDC
Plug, Output Lemosa, EPL.0S.302.HLN

(Fitting Socket: FFA.0S.302.CLADxx)

Plug, Power-Supply 24VDC, Tube-Plug, 5,5mm x 2,1mm
Analog Input BNC
Offset-Adjustment Potentiometer, Wheel
Power Supply External, 24 VDC, 4A min.
Working-Temperature -5 bis 50 °C
Enclosure Aluminum, black
Dimensions 105 (130 w/ shackles) x 164 x 64.4 mm
Standards 2006/95/EC, Low Voltage Directive

2004/108/EC, EMC Directive

2011/65/EU, RoHS

Safety (Low Voltage Directive): EN 61010-1:2010

EMC: EN 61326-1:2013

RoHS: EN 50581:2012
