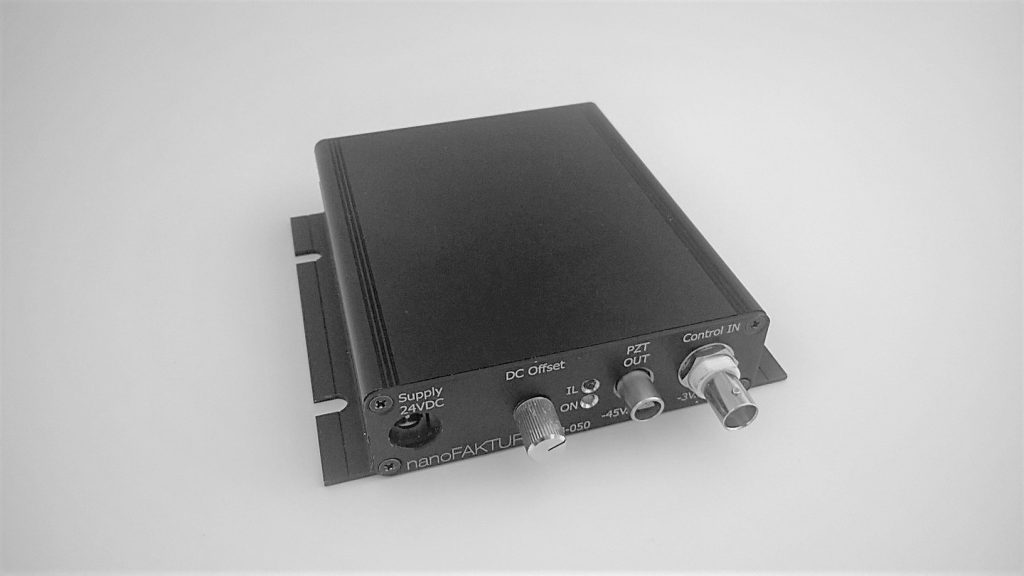

EBO-050100
nanoFaktur Piezo stages and actuators
External URL: nanofaktur.com
DATASHEET: EBO-050100-Specifications.pdf
Description
| Product-Number | EBO-050100 | Unit |
| Channels | 1 | |
| Output-Voltage | -45 to +180 | V |
| Input-Voltage | -3 to +12 | V |
| Offset-Adjustment with Potentiometer | 0 to 10 | V |
| Amplification | 15 | |
| Noise, Output | 0.3 | mV |
| Max. Current (<50 ms) | 100 | mA |
| Max. Average Current | 50 | mA |
| Max. Capacitive Load at Output | 25 | µF |
| Protection | Short Circuit Proof | |
| Supply-Voltage | 24 | VDC |
| Plug, Output | Lemosa, EPL.0S.302.HLN
(Fitting Socket: FFA.0S.302.CLADxx) |
|
| Plug, Power-Supply | 24VDC, Tube-Plug, 5,5mm x 2,1mm | |
| Analog Input | BNC | |
| Offset-Adjustment | Potentiometer, Knurl | |
| Power Supply | External, 24 VDC, included | |
| Working-Temperature | -5 to +50 | °C |
| Enclosure | Aluminum, black | |
| Dimensions | 105 (130 w/ shackles) x 124 x 30,5 | mm |
| Standards | 2006/95/EC, Low Voltage Directive
2004/108/EC, EMC Directive 2011/65/EU, RoHS Safety (Low Voltage Directive): EN 61010-1:2010 EMC: EN 61326-1:2013 RoHS: EN 50581:2012 |
