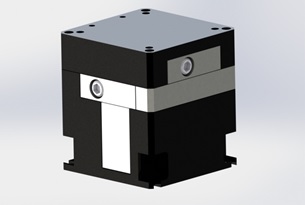

C3S CUBE XYZ-Stage, 250 µm

Description

Product-Number C3O-L00250 C3S-D00250 Unit
Position-Sensor SGS
Displacement (0..150 V) 185 185 µm
Displacement (-45..180 V) 295 295 µm
Displacement, closed loop 250 µm
Resolution, open loop 1 1 nm
Resolution, closed loop 1.5 nm
Linearity, closed loop 0.2 %
Repeatability, closed loop 25 nm
Push/Pull 15/10 N
Stiffness 0.4 N/µm
Lowest Resonance, unloaded 210 Hz
Lowest Resonance, w/ load 30g 190 Hz
El. Capacitance @ 1V eff. 1kHz 2.2/axis µF
Body-Material aluminum, stainless steel
Dimensions 40x40x44.6 mm
3 Wires à 1.5 m
3 Connectors Lemosa DSub15
Operating Temperature -20..80 °C
  • Vacuum-Compatibility and/or Non-Magnetic
  • Suitable drivers, open-loop, EBO-050100
  • Suitable controllers, closed-loop, EBD-060100
