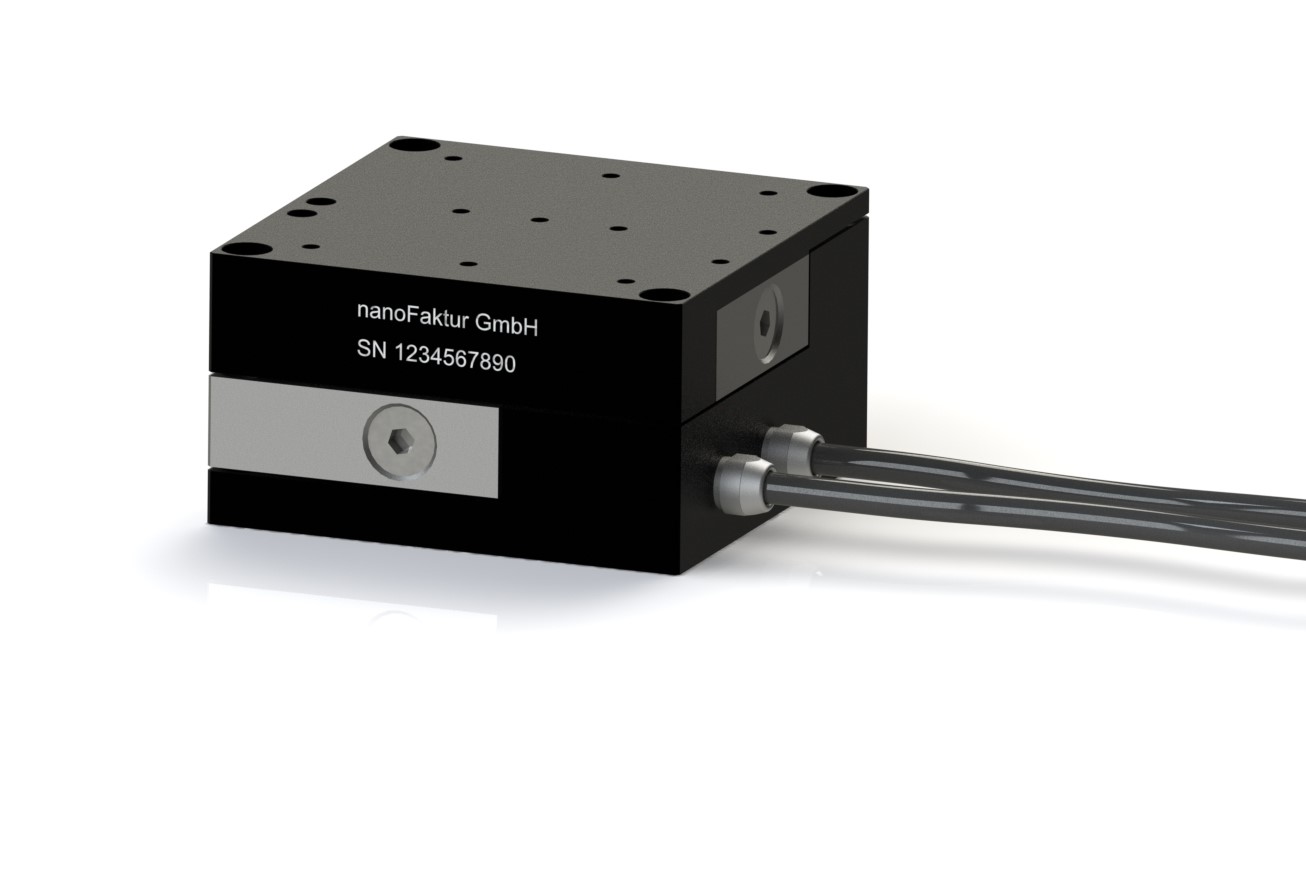

C2S XY-Stage, 600 µm
nanoFaktur Piezo stages and actuators
External URL: nanofaktur.com
DATASHEET: C2S-D00600-Specification.pdf
Description
| Product-Number | C2O-L00600 | C2S-D00600 | Unit |
| Position-Sensor | – | SGS | |
| Range (-45..180 V) | 720×720 | 720×720 | µm |
| Range, closed loop | – | 600×600 | µm |
| Resolution, open loop | 4 | 4 | nm |
| Resolution, closed loop | – | 6 | nm |
| Linearity, closed loop | – | 0.2 | % |
| Repeatability, closed loop | – | 50 | nm |
| Push/Pull | 50/20 | N | |
| Stiffness | 0.15 | N/µm | |
| Lowest Resonances, unloaded | 190/145 | Hz | |
| El. Capacitance @ 1V eff. 1kHz | 4.4/axis | µF | |
| Body-Material | aluminum, stainless steel | ||
| Dimensions | 60x60x33 | mm | |
| 3 Wires à | 1.5 | m | |
| 3 Connectors | Lemosa | DSub15 | |
| Operating Temperature | -20..+80 | °C | |
- Vacuum-Compatibility and/or Non-Magnetic
- Suitable drivers, open-loop, EBO-050100
- Suitable controllers, closed-loop, EBD-060100
