DCX-400

Available upon request

4 axis DC servo motor controller.

Special motorized and electronics

Mass:  750 grams
Dimensions:  4 x 3.15 x 1.2 inch
DATASHEET DCX-400DS.pdf

Images


Description

Designed for DC Servo motors with quadrature ecoder.
Our goal was to make this controller very flexible and user friendly.
Can be controlled from one PC interface via USB, RS-232, Ethernet or wireless.
DEMO software and LabView drivers available.

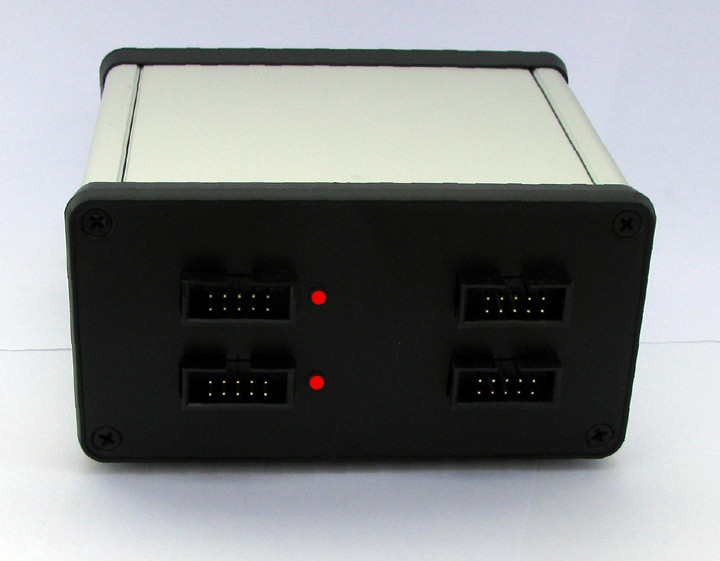

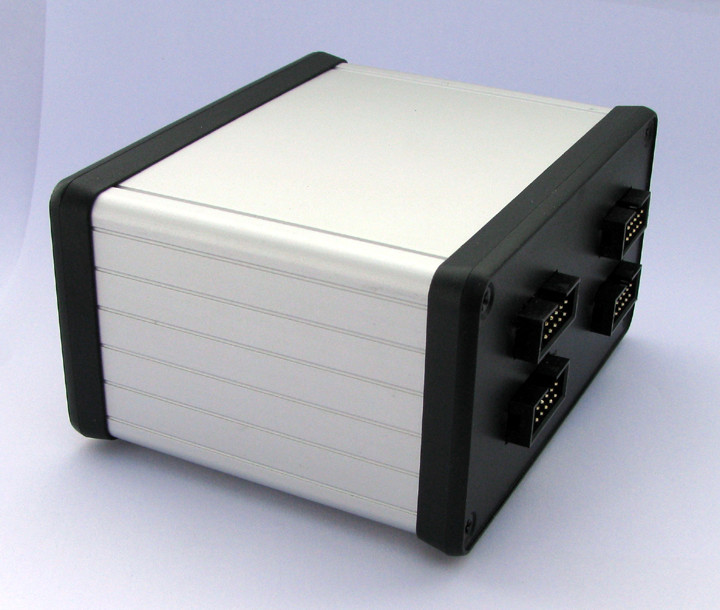

  • Four independent axis installed in an extruded Al enclosure.
  • Based on the single axis OEM controller board DSP-21
  • Maximum electrical motor specs: 24V, 1Amp, DC.
  • Adjustable speed, acceleration and torque
  • Closed loop with PID control
  • Simple 2 letter commands via a terminal program.
  • User MACRO programing capability
  • Software configurable Limit Switched and motor direction.

Similar products                         Recommended mechanics
      STX-400                                         LDC-10



Files

File NameSize
DCX-400DS.pdf278.24KB
DC_Quick_Start.pdf435.49KB
FirstOperation.pdf232.06KB
USB_DRIVER_WIN.zip3.71MB
